Title: Coarse Stray Light Survey, 160um Array (CE1)
Performance Test 8.14
Analysis by: Vignesh Bhuvaneshwar (2 OCT 2000)
Summary: Darkest position is scanabs = 3281
The average signal for each image was determined by a simple average
for all scan mirror positions. Only the real pixels were used in
determining the average (i.e. 1:20,1:2). The results are plotted below.
DATA: list
(multiple, 10s, 3 DCE, stim)

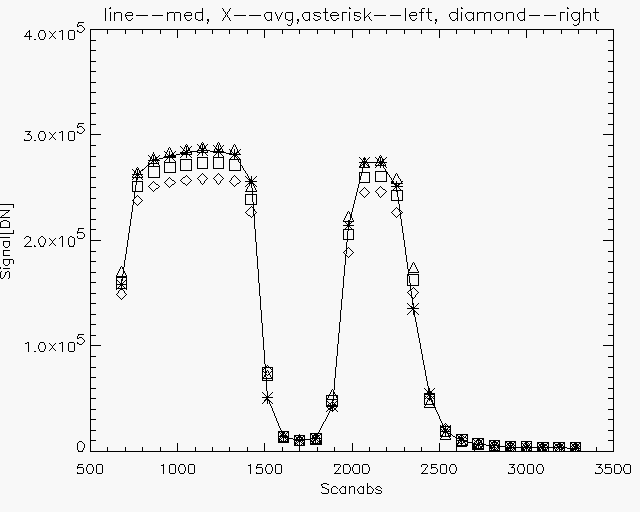

Average brightness as a function of scan mirror position is plotted.
