Title: Coarse Stray Light Survey, 70um Array (CE1)
Performance Test 8.13
Analysis by: Vignesh Bhuvaneshwar (1 Nov 2000, )
Summary:
Darkest total array position is scanabs = 2909
Darkest left side only array position is scanabs = 2909
Darkest right side only array position is scanabs = 1328
The average signal for each image was determined by a simple average
for all scan mirror positions. In addition, the average signal from the
left and right sides of the array, and the bottom 8 pixels were determined. The results are
plotted below.
DATA: list
(multiple, 10s, 3 DCE, stim)

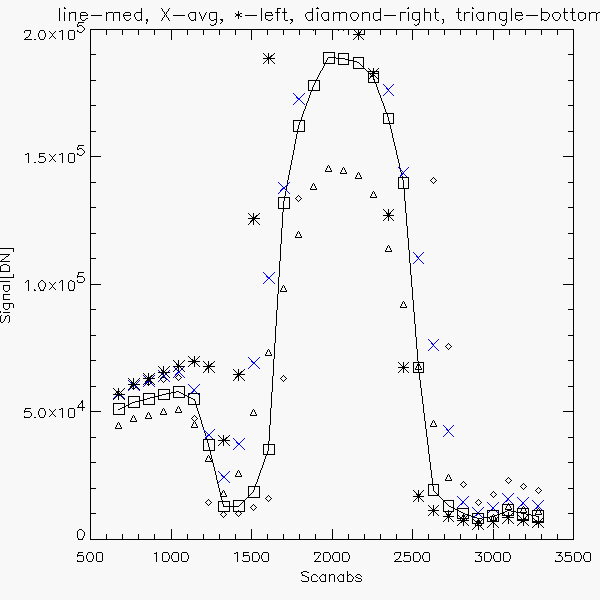

Average brightness as a function of scan mirror position is plotted.
