Principal:
Deputy:
Analyst:
AORKEYS:
Last Updated:

Task Outcome Summary

DATA STATUS: Nominal
TASK OUTCOME: Nominal

Abstract

This meta task is to track the 70 and 160 micron dark/read noise measurements for IOC/SV.

Analysis

The dark data were reduced using the DAT version 2-32. Sensitive cosmic ray detection (mips_sloper comandline switch -q) was used and the electronic nonlinearity correction was not applied. The dark datasets were run through mips_caler. Finally, the dark images for d2a and d2b were created using mips_enhancer. The mips_enhancer was run with the commandline options "-OW -OD -D". The read noise was measured from the read noise datasets using the get_rdnoise.pro program.

Results

Darks - 70 micron

The d2a dark images are shown below along with average measurements. The d2b dark images are not shown as they systematically brighter. A comparison to ground test data (LBTC) is given as well.

Ground-LBTC scale = 0 - 0.015 counts = (7.99 +/- 7.39)X10^-3	CamG scale = 0 - 0.015 counts = (6.24 +/- 3.72)X10^-3	CamH scale = 0 - 0.015 counts = (6.04 +/- 2.95)X10^-3	CamH1 (CE2) scale = 0 - 0.015 counts = (5.30 +/- 2.66)X10^-3
CamI scale = 0 - 0.015 counts = (5.93 +/- 6.23)X10^-3	CamK (30/22 mV for side A/B) scale = 0 - 0.0075 counts = (3.15 +/- 3.26)X10^-3

Noise - 70 micron

The noise were determined for the d2a noise datasets taken during routine IOC darks. For details of how these measurements were make, see the task writeups for individual campaigns.

The noise measurement given here is the noise in excess of that expected from photon statistics.

Only d2a data is shown, d2b gives very similiar read noise results, expect for a factor of two higher dark current.

Full Array, Empirical 3*sigma rejection

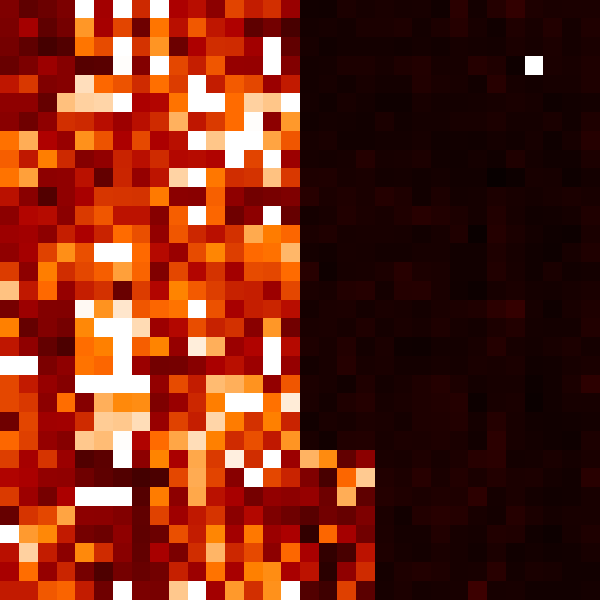

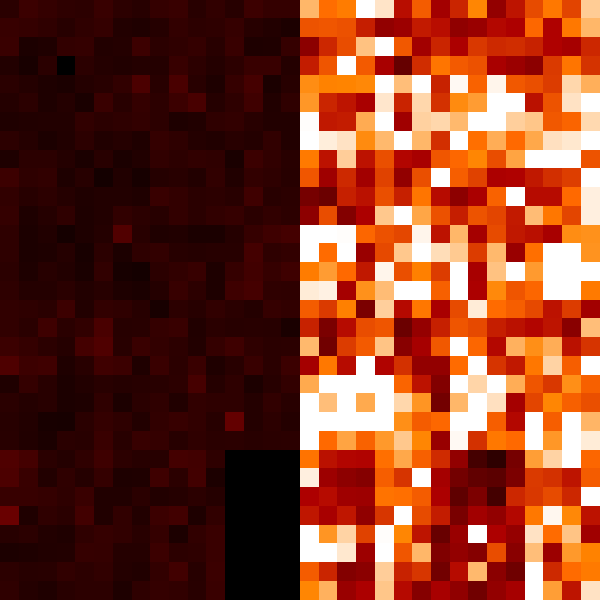

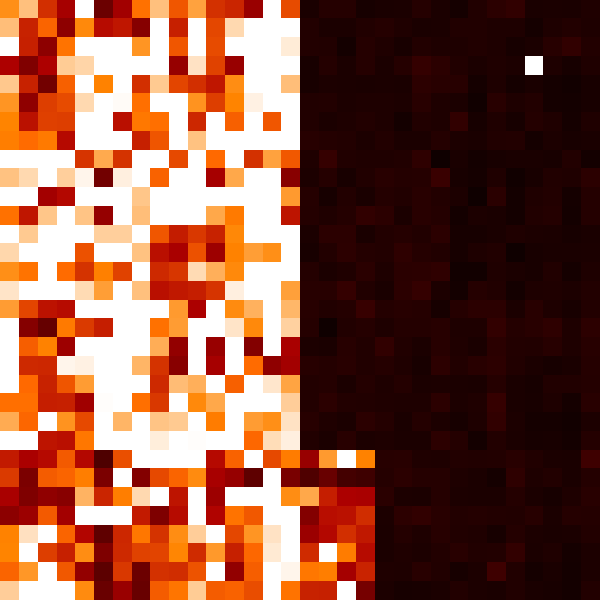

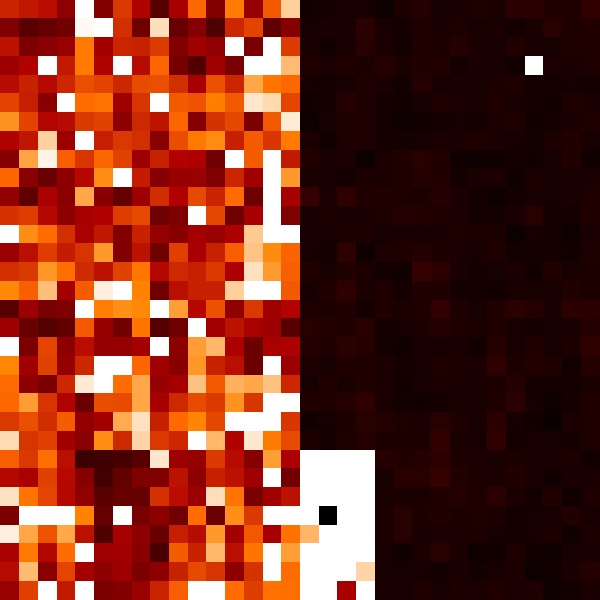

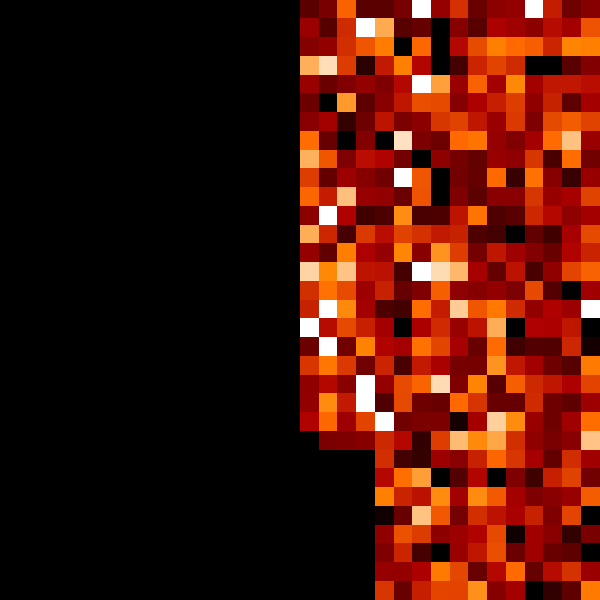

Ground-LBTC scale = 0 - 300 e counts = 243.8 +/- 98.2 e/s read noise = 126.2 +/- 60.2 e DCEs used = 49.24 per pixel	CamG scale = 0 - 15000 e counts = 696.6 +/- 362.4 e/s read noise = 5028.9 +/- 4619.4 e DCEs used = 45.46 per pixel	CamH scale = 0 - 15000 e counts = 699.6 +/- 413.2 e/s read noise = 4981.9 +/- 4497.8 e DCEs used = 45.62 per pixel	CamH1 (CE2) scale = 0 - 15000 e counts = 793.3 +/- 402.5 e/s read noise = 7800.0 +/- 7900.9 e DCEs used = 45.29 per pixel
CamI scale = 0 - 15000 e counts = 732.4 +/- 1323.1 e/s read noise = 5770.2 +/- 5963.0 e DCEs used = 45.37 per pixel	CamK (30/22 mV for side A/B) scale = 0 - 5000 e counts = 336.3 +/- 150.9 e/s noise = 2067.1 +/- 1697.1 e DCEs used = 46.39 per pixel 980 pixels
Side A (minus readout 4,4), All DCEs with CR detected rejected, Empirical 3*sigma rejection

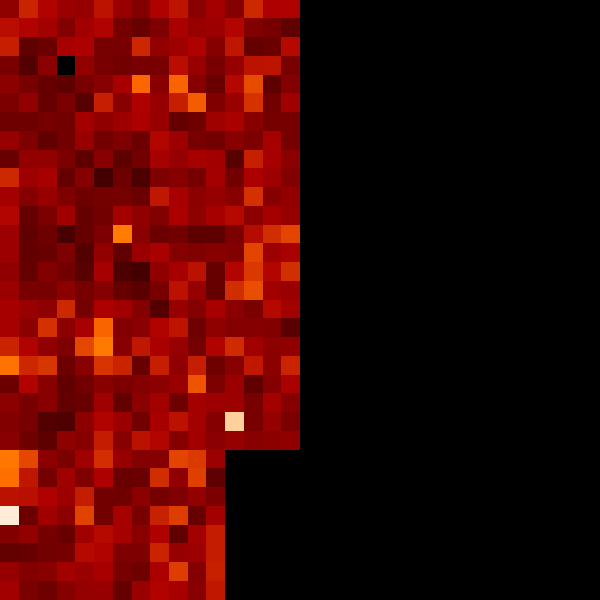

Ground-LBTC scale = 0 - 200 e counts = 179.8 +/- 57.9 e/s read noise = 88.9 +/- 29.7 e DCEs used = 47.58 per pixel	CamG scale = 0 - 1500 e counts = 527.7 +/- 209.6 e/s read noise = 685.2 +/- 236.4 e DCEs used = 11.87 per pixel	CamH scale = 0 - 1500 e counts = 532.6 +/- 176.1 e/s read noise = 689.4 +/- 233.9 e DCEs used = 11.39 per pixel	CamH1 (CE2) scale = 0 - 1500 e counts = 596.3 +/- 178.8 e/s read noise = 746.1 +/- 337.4 e DCEs used = 8.90 per pixel
CamI scale = 0 - 1500 e counts = 516.0 +/- 169.1 e/s read noise = 720.3 +/- 283.6 e DCEs used = 10.25 per pixel	CamK (30/22 mV for side A/B) scale = 0 - 500 e counts = 305.1 +/- 117.7 e/s noise = 592.7 +/- 137.3 e DCEs used = 48.3 per pixel 468 pixels
